VP3162 - 1A/40V/1.2MHz White LED Driver

Product Overview

Part number	VP3162
Manufacturer	Viva Electronics
File Size	611.75 KB
Description	1A/40V/1.2MHz White LED Driver
Datasheet	VP3162 Datasheet

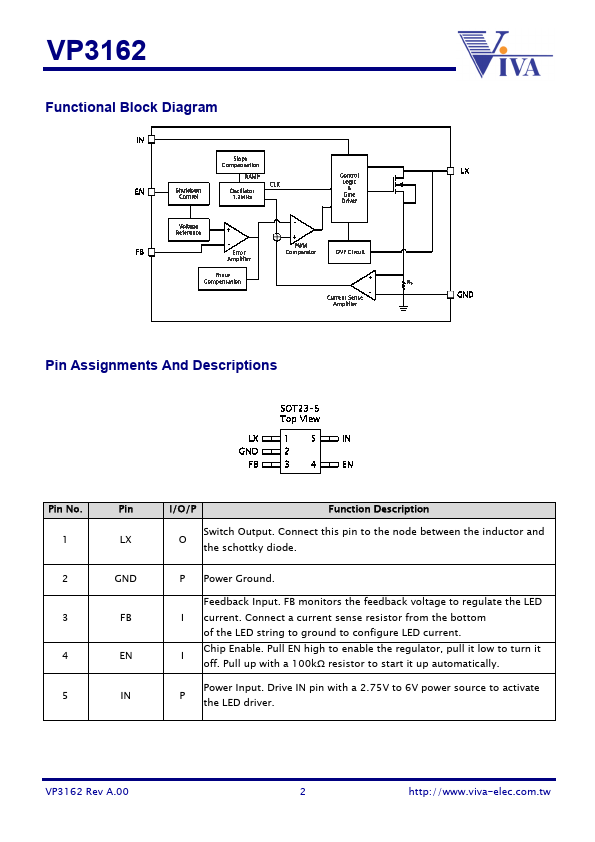

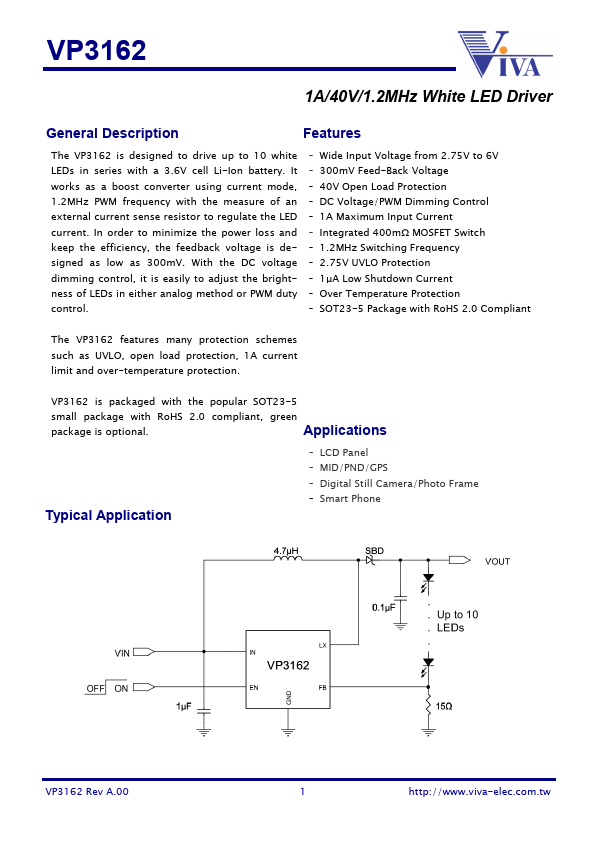

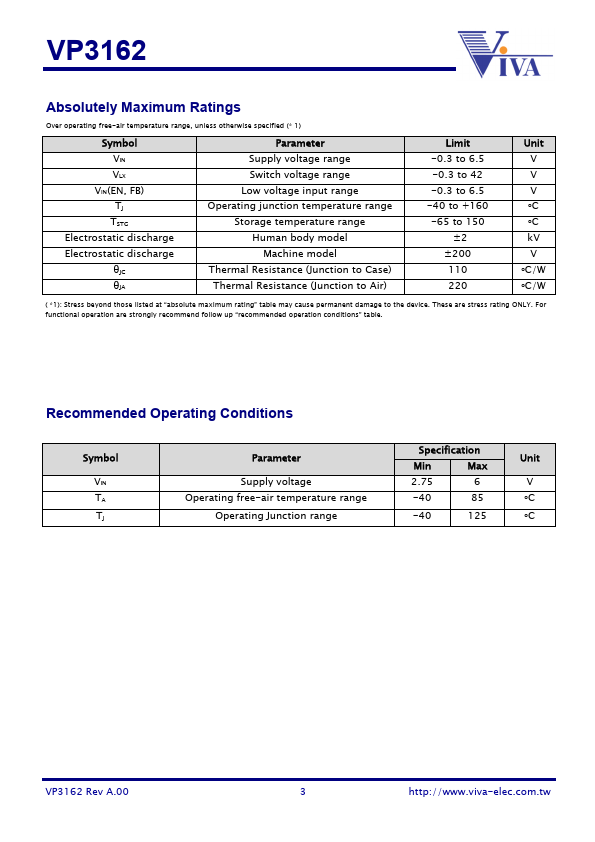

Additional preview pages of the VP3162 datasheet.

The VP3162 is designed to drive up to 10 white LEDs in series with a 3.6V cell Li-Ion battery. It works as a boost converter using current mode, 1.2MHz PWM frequency with the measure of an external current sense resistor to regulate the LED current. In order to minimize the power loss and keep the efficiency, the feedback voltage is designed as low as 300mV. With the DC voltage dimming control, it is easily to adjust the brightness of LEDs in either analog method or PWM duty control. - Wide In.
