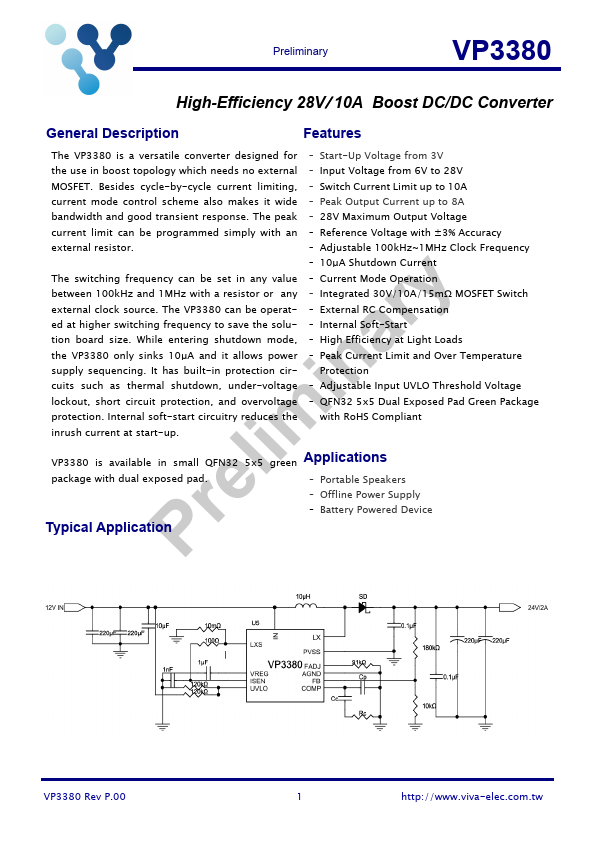

VP3380 - High-Efficiency 28V/ 10A Boost DC/DC Converter

Product Overview

Part number	VP3380
Manufacturer	Viva Electronics
File Size	1.00 MB
Description	High-Efficiency 28V/ 10A Boost DC/DC Converter
Datasheet	VP3380 Datasheet

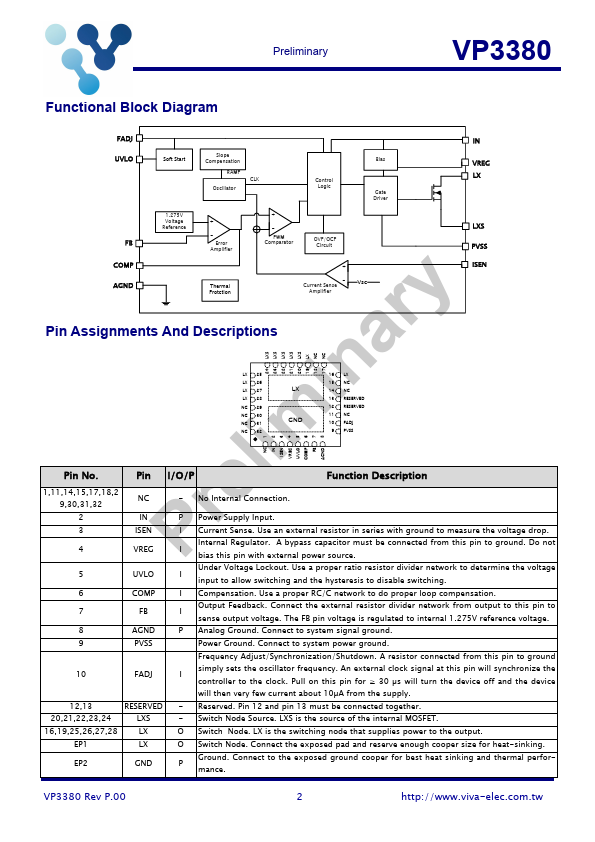

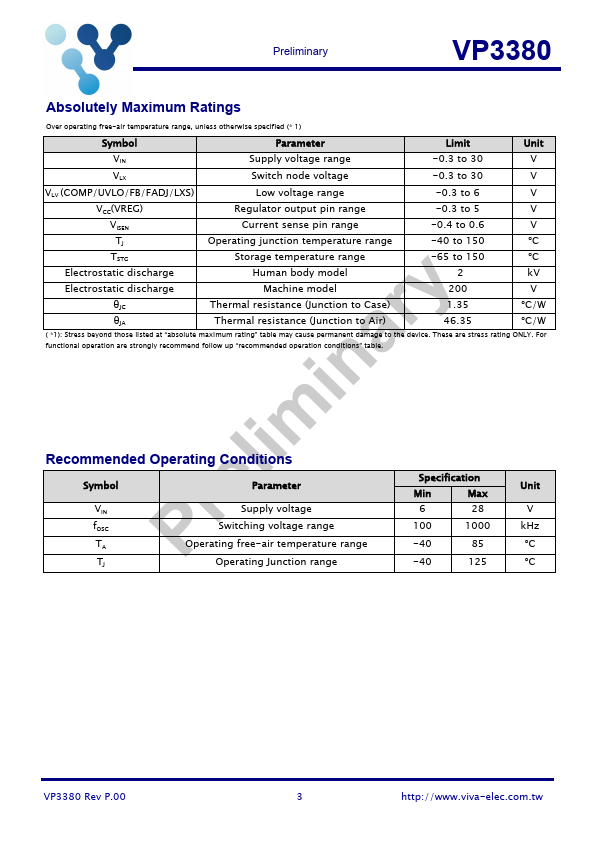

Additional preview pages of the VP3380 datasheet.

The VP3380 is a versatile converter designed for the use in boost topology which needs no external MOSFET. Besides cycle-by-cycle current limiting, current mode control scheme also makes it wide bandwidth and good transient response. The peak current limit can be programmed simply with an external resistor. The switching frequency can be set in any value between 100kHz and 1MHz with a resistor or any external clock source. The VP3380 can be operated at higher switching frequency to save the sol.
