VBT6045CBP Trench MOS Barrier Schottky Rectifier Rectifier

VBT6045CBP Description

www.DataSheet.co.kr New Product VBT6045CBP Vishay General Semiconductor Trench MOS Barrier Schottky Rectifier for PV Solar Cell Bypass Protection U.

VBT6045CBP Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C 2 K
* Not recommended for PCB bottom side wave mounting
* Compliant to RoHS Direct

VBT6045CBP Applications

* For use in solar cell junction box as a bypass diode for protection, using DC forward current without reverse bias. PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF at IF = 30 A TOP max. 2 x 30 A 45 V 320 A 0.47 V 150 °C MECHANICAL DATA Case: TO-263AB Molding compound meets UL 94 V-0 flammability ratin

📥 Download Datasheet

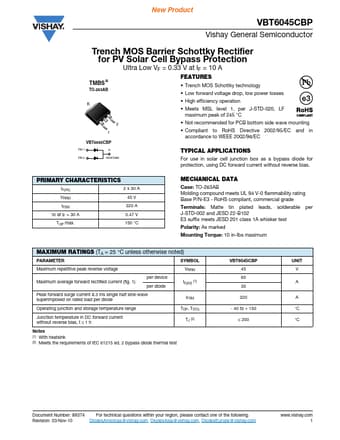

Preview of VBT6045CBP PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VBT6045CBP
Manufacturer
Vishay ↗
File Size
139.38 KB
Datasheet
VBT6045CBP_Vishay.pdf
Description
Trench MOS Barrier Schottky Rectifier Rectifier
