V30120SG High-Voltage Trench MOS Barrier Schottky Rectifier

Vishay

Description

www.DataSheet.co.kr New Product V30120SG, VF30120SG, VB30120SG, VI30120SG Vishay General Semiconductor High-Voltage Trench MOS Barrier Schottky Rec.

📥 Download Datasheet

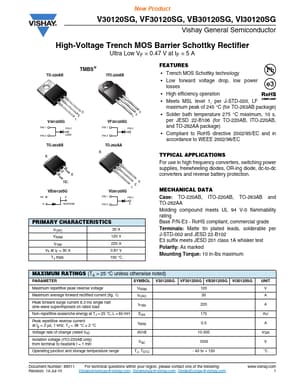

V30120SG Datasheet Preview — Preview of V30120SG PDF

Datasheet Specifications

Part number: V30120SG
Manufacturer: Vishay ↗
File Size: 212.06 KB
Datasheet: V30120SG_Vishay.pdf
Description: High-Voltage Trench MOS Barrier Schottky Rectifier

Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C (for TO-263AB package) 2 V30120SG PIN 1 PIN 2 CASE 3 1 VF30120SG PIN 1 PIN 2 2 3 1
* S

Applications

* For use in high frequency converters, switching power supplies, freewheeling diodes, OR-ing diode, dc-to-dc converters and reverse battery protection. PIN 3 PIN 3 TO-263AB K K TO-262AA A NC 1 VB30120SG NC A K HEATSINK 2 3 VI30120SG PIN 1 PIN 2 K MECHANICAL DATA Case: TO-220AB, ITO-220AB, TO
