V30120C Dual High-Voltage Trench MOS Barrier Schottky Rectifier

V30120C Description

www.vishay.com V30120C, VI30120C Vishay General Semiconductor Dual High Voltage Trench MOS Barrier Schottky Rectifier Ultra Low VF = 0.50 V at IF = .

V30120C Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 TYPICAL APPLI

V30120C Applications

* For use in high frequency DC/DC converters, switching power supplies, freewheeling diodes, OR-ing diode, and reverse battery protection. PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM 2 x 15 A 120 V 150 A VF at IF = 15 A 0.68 V TJ max. Package 150 °C TO-220AB, TO-262AA Diode variation Common cath

📥 Download Datasheet

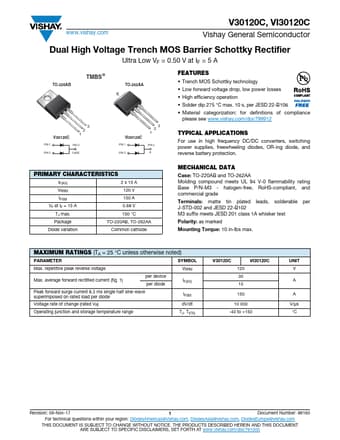

Preview of V30120C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
V30120C
Manufacturer
Vishay ↗
File Size
138.97 KB
Datasheet
V30120C_Vishay.pdf
Description
Dual High-Voltage Trench MOS Barrier Schottky Rectifier
