V30100C Dual High-Voltage Trench MOS Barrier Schottky Rectifier

V30100C Description

www.vishay.com V30100C, VI30100C Vishay General Semiconductor Dual High Voltage Trench MOS Barrier Schottky Rectifier Ultra Low VF = 0.455 V at IF =.

V30100C Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Low thermal resistance
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* Material categorization: for definitions of compliance please see www. v

V30100C Applications

* For use in high frequency DC/DC converters, switching power supplies, freewheeling diodes, OR-ing diode, and reverse battery protection. PRIMARY CHARACTERISTICS IF(AV) 2 x 15 A VRRM IFSM 100 V 160 A VF at IF = 15 A 0.63 V TJ max. 150 °C Package TO-220AB, TO-262AA Diode variation Common

📥 Download Datasheet

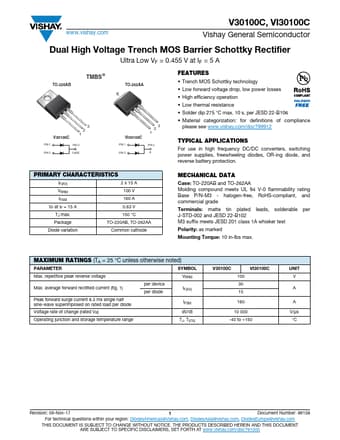

Preview of V30100C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
V30100C
Manufacturer
Vishay ↗
File Size
133.72 KB
Datasheet
V30100C_Vishay.pdf
Description
Dual High-Voltage Trench MOS Barrier Schottky Rectifier
