LH1546AT-E3, LH1546AAB-E3 1 Form A Solid State Relay

Vishay Siliconix

Description

www.DataSheet4U.com LH1546AT-E3/AAB-E3/AABTR-E3 Vishay Semiconductors 1 Form A Solid State Relay DIP SMD .
The LH1546 is robust, ideal for telecom and ground fault applications.

📥 Download Datasheet

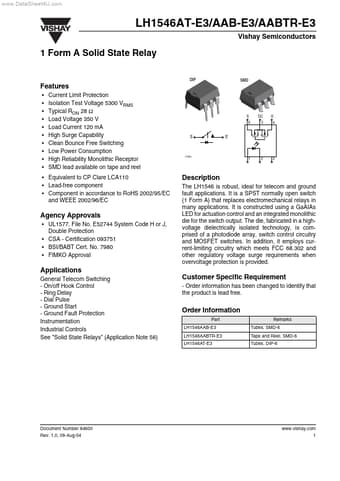

LH1546AT-E3 Datasheet Preview — This datasheet PDF includes multiple part numbers: LH1546AT-E3, LH1546AAB-E3. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: LH1546AT-E3, LH1546AAB-E3
Manufacturer: Vishay ↗ Siliconix
File Size: 178.39 KB
Datasheet: LH1546AAB-E3_VishaySiliconix.pdf
Description: 1 Form A Solid State Relay
Note: This datasheet PDF includes multiple part numbers: LH1546AT-E3, LH1546AAB-E3.
Please refer to the document for exact specifications by model.

Features

* Current Limit Protection Isolation Test Voltage 5300 VRMS Typical RON 28 Ω Load Voltage 350 V Load Current 120 mA High Surge Capability Clean Bounce Free Switching Low Power Consumption High Reliabili

Applications

* It is a SPST normally open switch (1 Form A) that replaces electromechanical relays in many applications. It is constructed using a GaAIAs LED for actuation control and an integrated monolithic die for the switch output. The die, fabricated in a highvoltage dielectrically isolated technology, is co
