LH1546AT 1 Form A Solid-State Relay

LH1546AT Description

www.vishay.com LH1546AT, LH1546AAB, LH1546AABTR Vishay Semiconductors 1 Form A Solid-State Relay (Normally Open) .
The LH1546 is robust, ideal for telecom and ground fault applications.

LH1546AT Features

* Current limit protection
* Isolation test voltage 5300 VRMS A1 6 S1
* Typical RON 22 Ω
* Load voltage 350 V C2 5 DC
* Load current 120 mA
* Clean bounce free switching 3 4 S2
* Low power consumption
* Material categorizatio

LH1546AT Applications

* It is a SPST normally open switch (1 Form A) that replaces electromechanical relays in many applications. It is constructed using a GaAlAs LED for actuation control and MOSFET switches for the output. In addition, it employs current-limiting circuitry to provide overvoltage protection. APPLICATION

📥 Download Datasheet

Preview of LH1546AT PDF

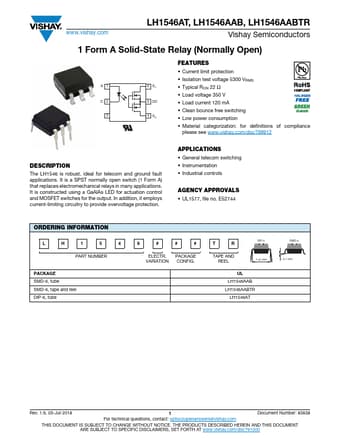

datasheet Preview Page 2 datasheet Preview Page 3
