LH1546AD 1 Form A Solid State Relay

LH1546AD Description

VISHAY LH1546AD/ ADF/ ADFTR Vishay Semiconductors 1 Form A Solid State Relay .
The LH1546AD (4 Pin DIP) is robust, ideal for telecom and ground fault applications.

LH1546AD Features

* Current Limit Protection Isolation Test Voltage 5300 VRMS Typical RON 28 Ω Load Voltage 350 V Load Current 120 mA High Surge Capability Linear, AC/DC Operation Clean Bounce Free Switching Low Power Co

LH1546AD Applications

* It is a SPST normally open switch (1 Form A) that replaces electromechanical relays in many applications. It is constructed using a GaAs LED for actuation control and an integrated monolithic die for the switch output. The die, fabricated in a high-voltage dielectrically isolated BCDMOS technology,

📥 Download Datasheet

Preview of LH1546AD PDF

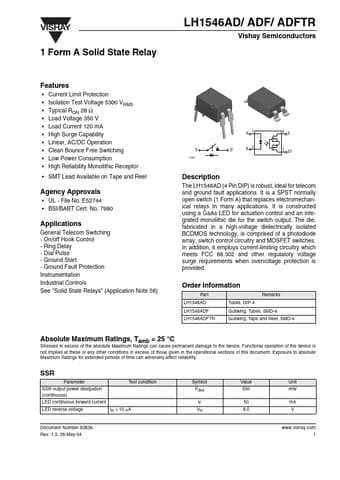

datasheet Preview Page 2 datasheet Preview Page 3
