LH1540AAB, LH1540AT 1 Form A Solid State Relay

LH1540AAB Description

www.DataSheet4U.com LH1540AT/AAB/AABTR 1 Form A Solid State Relay .
The LH1540 is robust, ideal for telecom and ground fault applications.

LH1540AAB Features

* Current Limit Protection
* l/O Isolation, 5300 VRMS
* Typical RON 20 Ω, max 25 Ω
* Load Voltage 350 V
* Load Current 120 mA
* High Surge Capability
* Linear, AC/DC Operation
* Clean Bounce Free Switching
* Low Power Consumptio

LH1540AAB Applications

* General Telecom Switching
* On/off Hook Control
* Ring Delay
* Dial Pulse
* Ground Start
* Ground Fault Protection
* Instrumentation
* Industrial Controls

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LH1540AAB, LH1540AT. Please refer to the document for exact specifications by model.

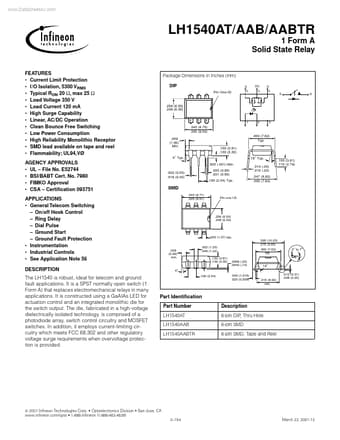

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LH1540AAB, LH1540AT
Manufacturer
Infineon ↗ Technologies
File Size
90.48 KB
Datasheet
LH1540AT_InfineonTechnologies.pdf
Description
1 Form A Solid State Relay
Note
This datasheet PDF includes multiple part numbers: LH1540AAB, LH1540AT.
Please refer to the document for exact specifications by model.
