LH1546AAB, LH1546AT 1 Form A Solid-State Relay

LH1546AAB Description

www.vishay.com LH1546AT, LH1546AAB, LH1546AABTR Vishay Semiconductors 1 Form A Solid-State Relay (Normally Open) .
The LH1546 is robust, ideal for telecom and ground fault applications.

LH1546AAB Features

* Current limit protection
* Isolation test voltage 5300 VRMS A1 6 S1
* Typical RON 22 Ω
* Load voltage 350 V C2 5 DC
* Load current 120 mA
* Clean bounce free switching 3 4 S2
* Low power consumption
* Material categorizatio

LH1546AAB Applications

* It is a SPST normally open switch (1 Form A) that replaces electromechanical relays in many applications. It is constructed using a GaAlAs LED for actuation control and MOSFET switches for the output. In addition, it employs current-limiting circuitry to provide overvoltage protection. APPLICATION

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LH1546AAB, LH1546AT. Please refer to the document for exact specifications by model.

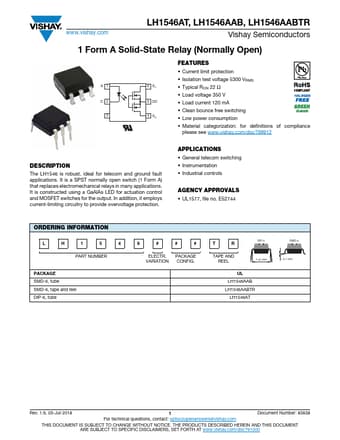

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LH1546AAB, LH1546AT
Manufacturer
Vishay ↗
File Size
149.85 KB
Datasheet
LH1546AT-Vishay.pdf
Description
1 Form A Solid-State Relay
Note
This datasheet PDF includes multiple part numbers: LH1546AAB, LH1546AT.
Please refer to the document for exact specifications by model.
