LH1546ADF 1 Form A Solid State Relay

Vishay Siliconix

Description

VISHAY LH1546AD/ ADF/ ADFTR Vishay Semiconductors 1 Form A Solid State Relay .
The LH1546AD (4 Pin DIP) is robust, ideal for telecom and ground fault applications.

📥 Download Datasheet

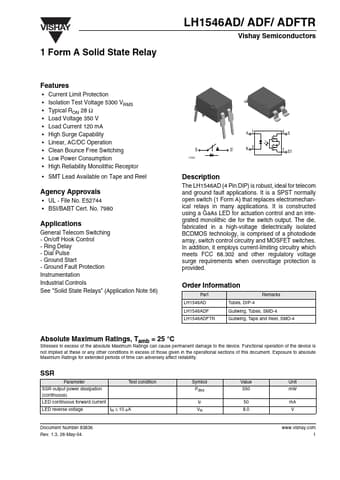

LH1546ADF Datasheet Preview — Preview of LH1546ADF PDF

Datasheet Specifications

Part number: LH1546ADF
Manufacturer: Vishay ↗ Siliconix
File Size: 164.21 KB
Datasheet: LH1546ADF_VishaySiliconix.pdf
Description: 1 Form A Solid State Relay

Features

* Current Limit Protection Isolation Test Voltage 5300 VRMS Typical RON 28 Ω Load Voltage 350 V Load Current 120 mA High Surge Capability Linear, AC/DC Operation Clean Bounce Free Switching Low Power Co

Applications

* It is a SPST normally open switch (1 Form A) that replaces electromechanical relays in many applications. It is constructed using a GaAs LED for actuation control and an integrated monolithic die for the switch output. The die, fabricated in a high-voltage dielectrically isolated BCDMOS technology,
