SLG59M1557V - 1.0A Integrated Power Switch

Silego

📥 Download Datasheet

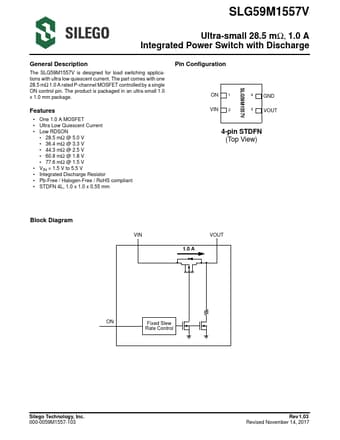

SLG59M1557V Datasheet Preview — Preview of SLG59M1557V PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SLG59M1557V
Manufacturer	Silego
File Size	196.48 KB
Description	1.0A Integrated Power Switch
Datasheet	SLG59M1557V-Silego.pdf

SLG59M1557V Product details

Description

The SLG59M1557V is designed for load switching applications with ultra low quiescent current.

Features

One 1.0 A MOSFET.
Ultra Low Quiescent Current.
Low RDSON.
28.5 mΩ @ 5.0 V.
36.4 mΩ @ 3.3 V.
44.3 mΩ @ 2.5 V.
60.8 mΩ @ 1.8 V.
77.6 mΩ @ 1.5 V.
VIN = 1.5 V to 5.5 V.
Integrated Discharge Resistor.
Pb-Free / Halogen-Free / RoHS compliant.
STDFN 4L, 1.0 x 1.0 x 0.55 mm Pin Configuration SLG59M1557V ON 1 VIN 2 4 GND 3 VOUT 4-pin STDFN (Top View) Block Diagram VIN VOUT 1.0 A ON Fixed S.
