SLG59M1526V - Dual 4.5A GreenFET Load Switch

Renesas

📥 Download Datasheet

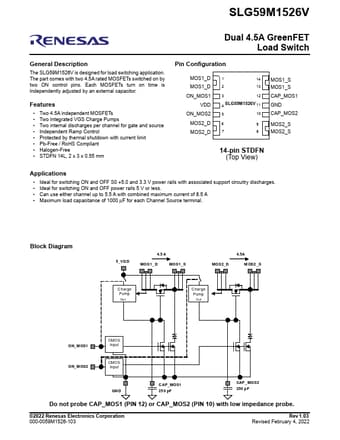

SLG59M1526V Datasheet Preview — Preview of SLG59M1526V PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SLG59M1526V
Manufacturer	Renesas
File Size	354.94 KB
Description	Dual 4.5A GreenFET Load Switch
Datasheet	SLG59M1526V-Renesas.pdf

SLG59M1526V Product details

Description

The SLG59M1526V is designed for load switching application.

Features

Two 4.5A independent MOSFETs.
Two Integrated VGS Charge Pumps.
Two internal discharges per channel for gate and source.
Independent Ramp Control.
Protected by thermal shutdown with current limit.
Pb-Free / RoHS Compliant.
Halogen-Free.
STDFN 14L, 2 x 3 x 0.55 mm Pin Configuration MOS1_D MOS1_D ON_MOS1 VDD ON_MOS2 MOS2_D MOS2_D 1 14 2 13 3 12 4 SLG59M1526V 11 5 10 6 9 7 8 MOS1_S MOS1_S CAP_MOS1 GND CAP_MOS2 M.
