SLG59M1556V - 2.0A GreenFET 3 Load Switch

Silego

📥 Download Datasheet

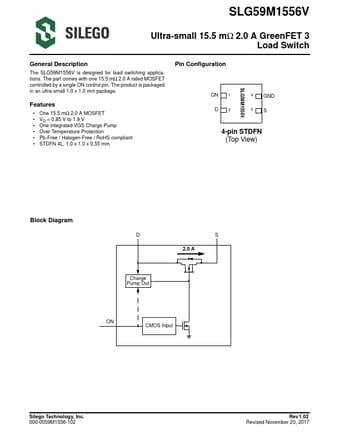

SLG59M1556V Datasheet Preview — Preview of SLG59M1556V PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SLG59M1556V
Manufacturer	Silego
File Size	153.95 KB
Description	2.0A GreenFET 3 Load Switch
Datasheet	SLG59M1556V-Silego.pdf

SLG59M1556V Product details

Description

The SLG59M1556V is designed for load switching applications.

Features

One 15.5 mΩ 2.0 A MOSFET.
VD = 0.85 V to 1.9 V.
One integrated VGS Charge Pump.
Over Temperature Protection.
Pb-Free / Halogen-Free / RoHS compliant.
STDFN 4L, 1.0 x 1.0 x 0.55 mm Pin Configuration SLG59M1556V ON 1 D2 4 GND 3S 4-pin STDFN (Top View) Block Diagram D Charge Pump Out 2.0 A S ON CMOS Input Silego Technology, Inc. 000-0059M1556-102 Rev 1.02 Revised November 20, 2017 Pin.
