SLG59M1527V - Dual 4.5A Load Switch

Renesas

📥 Download Datasheet

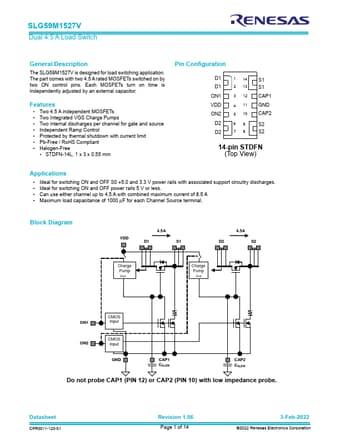

SLG59M1527V Datasheet Preview — Preview of SLG59M1527V PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SLG59M1527V
Manufacturer	Renesas
File Size	605.05 KB
Description	Dual 4.5A Load Switch
Datasheet	SLG59M1527V-Renesas.pdf

SLG59M1527V Product details

Description

The SLG59M1527V is designed for load switching application.

Features

Two 4.5 A independent MOSFETs.
Two Integrated VGS Charge Pumps.
Two internal discharges per channel for gate and source.
Independent Ramp Control.
Protected by thermal shutdown with current limit.
Pb-Free / RoHS Compliant.
Halogen-Free.
STDFN-14L, 1 x 3 x 0.55 mm Pin Configuration D1 D1 ON1 VDD ON2 D2 D2 1 14 2 13 3 12 4 11 5 10 69 78 S1 S1 CAP1 GND CAP2 S2 S2 14-pin STDFN (Top View).
