SLG59M1558V - 1A Load Switch

Renesas

📥 Download Datasheet

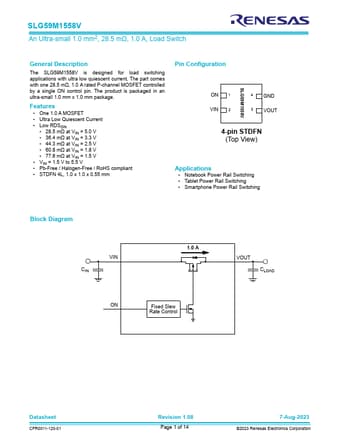

SLG59M1558V Datasheet Preview — Preview of SLG59M1558V PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SLG59M1558V
Manufacturer	Renesas
File Size	529.09 KB
Description	1A Load Switch
Datasheet	SLG59M1558V-Renesas.pdf

SLG59M1558V Product details

Description

The SLG59M1558V is designed for load switching applications with ultra low quiescent current.

Features

One 1.0 A MOSFET.
Ultra Low Quiescent Current.
Low RDSON.
28.5 mΩ at VIN = 5.0 V.
36.4 mΩ at VIN = 3.3 V.
44.3 mΩ at VIN = 2.5 V.
60.8 mΩ at VIN = 1.8 V.
77.6 mΩ at VIN = 1.5 V.
VIN = 1.5 V to 5.5 V.
Pb-Free / Halogen-Free / RoHS compliant.
STDFN 4L, 1.0 x 1.0 x 0.55 mm Pin Configuration SLG59M1558V ON 1 VIN 2 4 GND 3 VOUT 4-pin STDFN (Top View).
