HCS12NK65V N-Channel MOSFET

HCS12NK65V Description

HCS12NK65V Apr 2014 HCS12NK65V 650V N-Channel Super Junction MOSFET BVDSS = 650 V RDS(on) typ = 0.34 ȍ ID = 12 A .

HCS12NK65V Features

* ‰ Originative New Design ‰ Superior Avalanche Rugged Technology ‰ Robust Gate Oxide Technology ‰ Very Low Intrinsic Capacitances ‰ Excellent Switching Characteristics ‰ Unrivalled Gate Charge : 32 nC (Typ. ) ‰ Extended Safe Operating Area ‰ Lower RDS(ON) : ȍ(Typ. ) @VGS=10V ‰ 100% Avalanche Test

📥 Download Datasheet

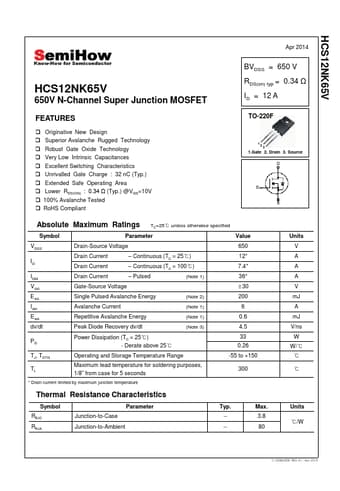

Preview of HCS12NK65V PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HCS12NK65V
Manufacturer
SemiHow
File Size
418.47 KB
Datasheet
HCS12NK65V-SemiHow.pdf
Description
N-Channel MOSFET
