HBS810H, HBS802H - 8.0 Amp Surface Mount Bridge Rectifier

SeCoS

📥 Download Datasheet

HBS810H Datasheet Preview — This datasheet PDF includes multiple part numbers: HBS810H, HBS802H. Please refer to the document for exact specifications by model.

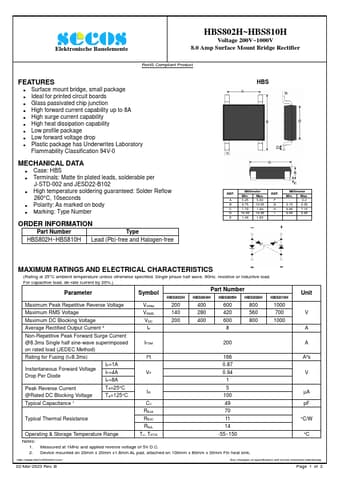

datasheet Preview Page 2

Datasheet Details

Part number	HBS810H, HBS802H
Manufacturer	SeCoS
File Size	442.23 KB
Description	8.0 Amp Surface Mount Bridge Rectifier
Datasheet	HBS802H-SeCoS.pdf
Note	This datasheet PDF includes multiple part numbers: HBS810H, HBS802H. Please refer to the document for exact specifications by model.

HBS810H Product details

Features

Surface mount bridge, small package.
Ideal for printed circuit boards.
Glass passivated chip junction.
High forward current capability up to 8A.
High surge current capability.
High heat dissipation capability.
Low profile package.
Low forward voltage drop.
Plastic package has Underwrites Laboratory Flammability Classification 94V-0.
