HBS402 - Surface Mount Bridge Rectifier

📥 Download Datasheet

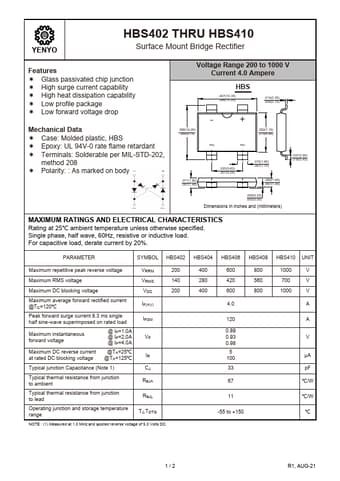

HBS402 Datasheet Preview — Preview of HBS402 PDF

datasheet Preview Page 2

Datasheet Details

Part number	HBS402
Manufacturer	YENYO
File Size	871.72 KB
Description	Surface Mount Bridge Rectifier
Datasheet	HBS402-YENYO.pdf

HBS402 Product details

Features

Glass passivated chip junction.
High surge current capability.
High heat dissipation capability.
Low profile package.
Low forward voltage drop Mechanical Data.
Case: Molded plastic, HBS.
Epoxy: UL 94V-0 rate flame retardant.
Terminals: Solderable per MIL-STD-202, method 208.
Polarity: : As marked on body Voltage Range 200 to 1000 V Current 4.0 Ampere HBS .407(10.35) .396(10.05) .014(0.35) .006(0.15) - .396(10.0.
