HBS404, HBS402 - Surface Mount Bridge Rectifier

📥 Download Datasheet

HBS404 Datasheet Preview — This datasheet PDF includes multiple part numbers: HBS404, HBS402. Please refer to the document for exact specifications by model.

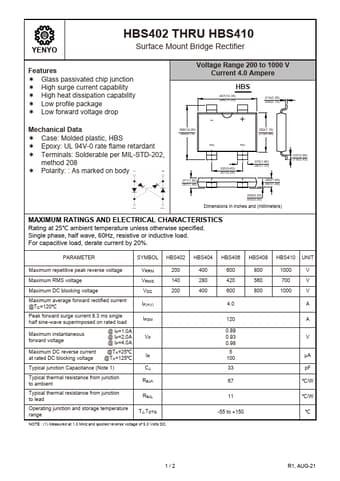

datasheet Preview Page 2

Datasheet Details

Part number	HBS404, HBS402
Manufacturer	YENYO
File Size	871.72 KB
Description	Surface Mount Bridge Rectifier
Datasheet	HBS402-YENYO.pdf
Note	This datasheet PDF includes multiple part numbers: HBS404, HBS402. Please refer to the document for exact specifications by model.

HBS404 Product details

Features

Glass passivated chip junction.
High surge current capability.
High heat dissipation capability.
Low profile package.
Low forward voltage drop Mechanical Data.
Case: Molded plastic, HBS.
Epoxy: UL 94V-0 rate flame retardant.
Terminals: Solderable per MIL-STD-202, method 208.
Polarity: : As marked on body Voltage Range 200 to 1000 V Current 4.0 Ampere HBS .407(10.35) .396(10.05) .014(0.35) .006(0.15) - .396(10.0.
