HBS808H, HBS802H 8.0 Amp Surface Mount Bridge Rectifier

HBS808H Description

Elektronische Bauelemente HBS802H~HBS810H Voltage 200V~1000V 8.0 Amp Surface Mount Bridge Rectifier RoHS Compliant Product .

HBS808H Features

* Surface mount bridge, small package
* Ideal for printed circuit boards
* Glass passivated chip junction
* High forward current capability up to 8A
* High surge current capability
* High heat dissipation capability
* Low profile package
* Low forward voltage drop

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HBS808H, HBS802H. Please refer to the document for exact specifications by model.

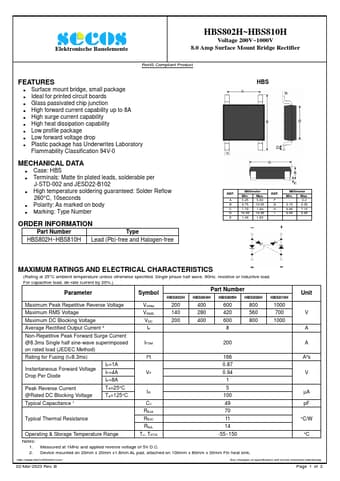

datasheet Preview Page 2

Datasheet Details

Part number
HBS808H, HBS802H
Manufacturer
SeCoS
File Size
442.23 KB
Datasheet
HBS802H-SeCoS.pdf
Description
8.0 Amp Surface Mount Bridge Rectifier
Note
This datasheet PDF includes multiple part numbers: HBS808H, HBS802H.
Please refer to the document for exact specifications by model.
