HBS804, HBS802 Single-Phase 8.0Amp Surface Mount Bridge Rectifier

HBS804 Description

HBS802 THRU HBS810 Glass Passivated Single-Phase 8.0Amp Surface Mount Bridge Rectifier .

HBS804 Features

* Surface mount bridge, small package;
* Ideal for printed circuit boards;
* Glass passivated chip junction;
* High forward current capability up to 8.0A;
* High surge current capability;
* High heat dissipation capability;
* Low profile package;
* Low forward voltage

HBS804 Applications

* General purpose use in AC-to-DC bridge full wave rectification for Fast Charging, Switching Power Supply, USB PD, Adapter and 3-in-1 Power Board, etc. Dimensions in inches and Maximum Ratings and Electrical Characteristics Ratings at 25℃ ambient temperature unless otherwise specified. Single Phase

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HBS804, HBS802. Please refer to the document for exact specifications by model.

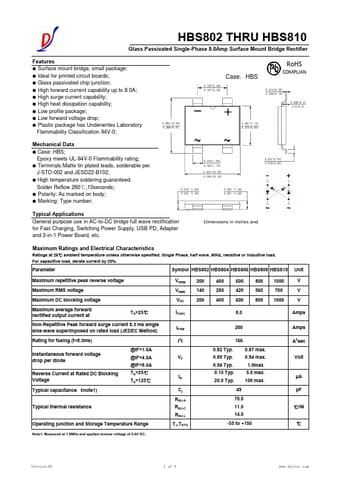

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HBS804, HBS802
Manufacturer
DIYI
File Size
391.59 KB
Datasheet
HBS802-DIYI.pdf
Description
Single-Phase 8.0Amp Surface Mount Bridge Rectifier
Note
This datasheet PDF includes multiple part numbers: HBS804, HBS802.
Please refer to the document for exact specifications by model.
