HBS802H 8.0 Amp Surface Mount Bridge Rectifier

HBS802H Description

Elektronische Bauelemente HBS802H~HBS810H Voltage 200V~1000V 8.0 Amp Surface Mount Bridge Rectifier RoHS Compliant Product .

HBS802H Features

* Surface mount bridge, small package
* Ideal for printed circuit boards
* Glass passivated chip junction
* High forward current capability up to 8A
* High surge current capability
* High heat dissipation capability
* Low profile package
* Low forward voltage drop

📥 Download Datasheet

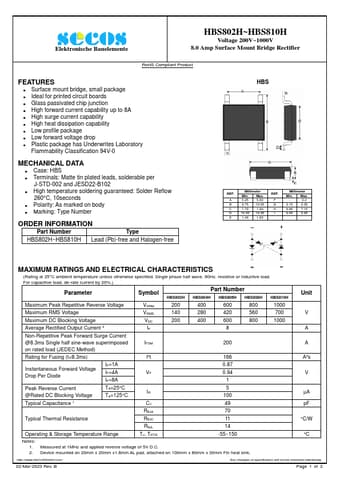

Preview of HBS802H PDF
datasheet Preview Page 2

Datasheet Details

Part number
HBS802H
Manufacturer
SeCoS
File Size
442.23 KB
Datasheet
HBS802H-SeCoS.pdf
Description
8.0 Amp Surface Mount Bridge Rectifier
