K4S560832E-NC75, K4S560432E-NC SDRAM 256Mb E-die

Samsung semiconductor

Description

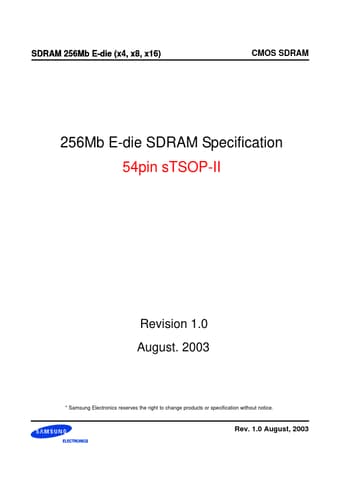

SDRAM 256Mb E-die (x4, x8, x16) CMOS SDRAM 256Mb E-die SDRAM Specification 54pin sTSOP-II Revision 1.0 August.2003 * Samsung Electronics reser.
The K4S560432E / K4S560832E / K4S561632E is 268,435,456 bits synchronous high data rate Dynamic RAM organized as 4 x 16,785,216 / 4 x 8,392,608 / 4 x.

📥 Download Datasheet

K4S560832E-NC75 Datasheet Preview — This datasheet PDF includes multiple part numbers: K4S560832E-NC75, K4S560432E-NC. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: K4S560832E-NC75, K4S560432E-NC
Manufacturer: Samsung semiconductor
File Size: 207.41 KB
Datasheet: K4S560432E-NC_Samsungsemiconductor.pdf
Description: SDRAM 256Mb E-die
Note: This datasheet PDF includes multiple part numbers: K4S560832E-NC75, K4S560432E-NC.
Please refer to the document for exact specifications by model.

Features

* JEDEC standard 3.3V power supply
* LVTTL compatible with multiplexed address
* Four banks operation
* MRS cycle with address key programs -. CAS latency (2 & 3) -. Burst length (1, 2, 4, 8 & Full page) -. Burst type (Sequential & Interleave)
* All inputs are

Applications

* Ordering Information Part No. K4S560432E-NC(L)75 K4S560832E-NC(L)75 K4S561632E-NC(L)60/75 Orgainization 64M x 4 32M x 8 16M x 16 Max Freq. 133MHz 133MHz 166/133MHz Interface LVTTL LVTTL LVTTL Package 54pin sTSOP 54pin sTSOP 54pin sTSOP Organization 64Mx4 32Mx8 16Mx16 Row Address A0~A12 A0~A1
