K4S560832E-TL75 - 256Mb E-die SDRAM Specification

Description

The K4S560432E / K4S560832E / K4S561632E is 268,435,456 bits synchronous high data rate Dynamic RAM organized as 4 x 16,785,216 / 4 x 8,392,608 / 4 x 4,196,304 words by 4bits, fabricated with SAMSUNG's high performance CMOS technology.

Features

  • JEDEC standard 3.3V power supply.
  • LVTTL compatible with multiplexed address.
  • Four banks operation.
  • MRS cycle with address key programs -. CAS latency (2 & 3) -. Burst length (1, 2, 4, 8 & Full page) -. Burst type (Sequential & Interleave).
  • All inputs are sampled at the positive going edge of the system clock.
  • Burst read single-bit write operation.
  • DQM (x4,x8) & L(U)DQM (x16) for masking.
  • Auto & self refresh.
  • 64ms.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
K4S560832E-UC75 SDRAM 256Mb E-die Samsung
K4S560432E-UC75 SDRAM 256Mb E-die Samsung
K4S561632C 256Mbit SDRAM Samsung
K4S561632E-UC60 SDRAM 256Mb E-die Samsung
K4S561632E-UC75 SDRAM 256Mb E-die Samsung

Other Datasheets by Samsung Semiconductor

Part Number Description
K4S560832E-TC75 256Mb E-die SDRAM Specification
K4S560832E-NC75 SDRAM 256Mb E-die
K4S560832E-NCL75 SDRAM 256Mb E-die
K4S560832A 256Mbit SDRAM 8M x 8bit x 4 Banks Synchronous DRAM LVTTL
K4S560832B 256Mbit SDRAM 8M x 8bit x 4 Banks Synchronous DRAM LVTTL

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

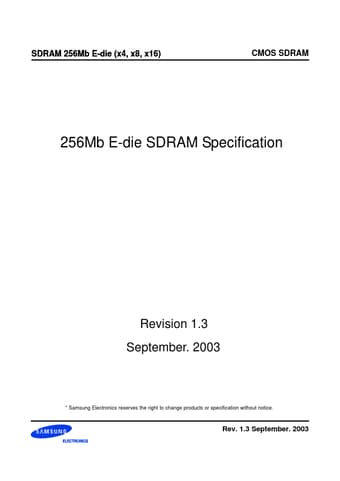

SDRAM 256Mb E-die (x4, x8, x16) CMOS SDRAM 256Mb E-die SDRAM Specification Revision 1.3 September. 2003 * Samsung Electronics reserves the right to change products or specification without notice. Rev. 1.3 September. 2003 SDRAM 256Mb E-die (x4, x8, x16) Revision History Revision 1.0 (May. 2003) - First release. Revision 1.1 (June. 2003) - Correct Typo Revision 1.2 (June. 2003) - Added 166MHz speed bin in x16 Revision 1.3 (September. 2003) - Corrected typo in ordering information. CMOS SDRAM Rev. 1.3 September. 2003 SDRAM 256Mb E-die (x4, x8, x16) CMOS SDRAM 16M x 4Bit x 4 Banks / 8M x 8Bit x 4 Banks / 4M x 16Bit x 4 Banks SDRAM FEATURES • JEDEC standard 3.3V power supply • LVTTL compatible with multiplexed address • Four banks operation • MRS cycle with address key programs -.
