SLG5NTH1011V - Reverse Blocking Load Switch

Renesas

The SLG5NTH1011V by Renesas is a Reverse Blocking Load Switch. Below is the official datasheet preview.

📥 Download Datasheet

SLG5NTH1011V Reverse Blocking Load Switch by Renesas - Datasheet Preview — Official preview page of the **SLG5NTH1011V** Reverse Blocking Load Switch datasheet (Renesas).

Datasheet Details

Part number	SLG5NTH1011V
Manufacturer	Renesas
File Size	1.69 MB
Description	Reverse Blocking Load Switch
Datasheet	SLG5NTH1011V-Renesas.pdf

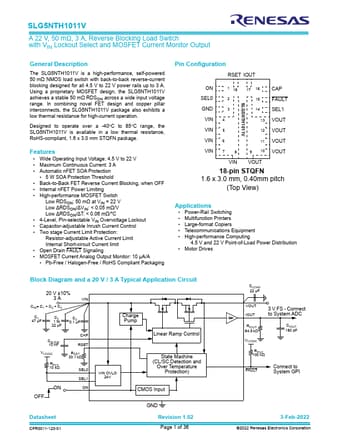

Additional preview pages of the SLG5NTH1011V datasheet.

SLG5NTH1011V Product details

Description

The SLG5NTH1011V is a high-performance, self-powered 50 mΩ NMOS load switch with back-to-back reverse-current blocking designed for all 4.5 V to 22 V power rails up to 3 A.

Features

Wide Operating Input Voltage: 4.5 V to 22 V.
Maximum Continuous Current: 3 A.
Automatic nFET SOA Protection.
5 W SOA Protection Threshold.
Back-to-Back FET Reverse Current Blocking, when OFF.
Internal nFET Power Limiting.
High-performance MOSFET Switch Low RDSON: 50 mΩ at VIN = 22 V Low ΔRDSON/ΔVIN: < 0.05 mΩ/V Low ΔRDSON/ΔT: < 0.06 mΩ/°C.
4-Level, Pin-selectable VIN Overvoltage Lockout.
Capacitor-adjustable Inrush.
