SLG51000 - Multi-Output LDOs and Integrated Load Switche

Renesas

The SLG51000 by Renesas is a Multi-Output LDOs and Integrated Load Switche. Below is the official datasheet preview.

📥 Download Datasheet

SLG51000 Multi-Output LDOs and Integrated Load Switche by Renesas - Datasheet Preview — Official preview page of the **SLG51000** Multi-Output LDOs and Integrated Load Switche datasheet (Renesas).

Datasheet Details

Part number	SLG51000
Manufacturer	Renesas
File Size	1.09 MB
Description	Multi-Output LDOs and Integrated Load Switche
Datasheet	SLG51000-Renesas.pdf

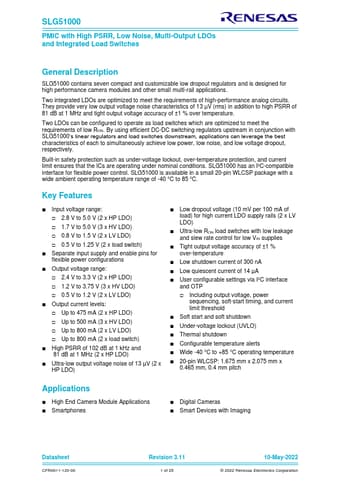

Additional preview pages of the SLG51000 datasheet.

SLG51000 Product details

Description

SLG51000 contains seven compact and customizable low dropout regulators and is designed for high performance camera modules and other small multi-rail applications.

Features

Input voltage range:.
2.8 V to 5.0 V (2 x HP LDO).
1.7 V to 5.0 V (3 x HV LDO).
0.8 V to 1.5 V (2 x LV LDO).
0.5 V to 1.25 V (2 x load switch).
Separate input supply and enable pins for flexible power configurations.
Output voltage range:.
2.4 V to 3.3 V (2 x HP LDO).
1.2 V to 3.75 V (3 x HV LDO).
0.5 V to 1.2 V (2 x LV LDO).
Output current levels:.
Up to 475 mA (2 x HP LDO).
Up to 500 mA (3 x.
