SLG55021-200010 - High Voltage Gate Driver

Renesas

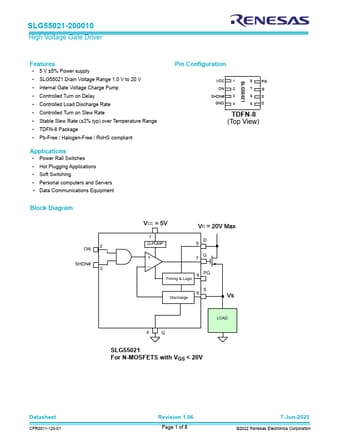

The SLG55021-200010 by Renesas is a High Voltage Gate Driver. Below is the official datasheet preview.

📥 Download Datasheet

SLG55021-200010 High Voltage Gate Driver by Renesas - Datasheet Preview — Official preview page of the **SLG55021-200010** High Voltage Gate Driver datasheet (Renesas).

Datasheet Details

Part number	SLG55021-200010
Manufacturer	Renesas
File Size	335.29 KB
Description	High Voltage Gate Driver
Datasheet	SLG55021-200010-Renesas.pdf
Additional preview pages of the SLG55021-200010 datasheet.

SLG55021-200010 Product details

Description

Pin # VCC ON SHDN# GND D S G PG Pin Name 1 2 3 4 5 6 7 8 Type Power Input Input GND Input Input Output Output Pin Description Supply Voltage CMOS Logic Level.High True Shut Down# - Low True Signal which immediately turns FET off Ground FET Drain Connection Source Connection FET Gate Drive Output CMOS Open Drain - Power Good, indicates external FET fully on Overview The SLG55021 N-Channel FET Gate Driver is used for controlling a delayed turn on and ramping slew rate of the source voltage

Features

5 V ±5% Power supply.
SLG55021 Drain Voltage Range 1.0 V to 20 V.
Internal Gate Voltage Charge Pump.
Controlled Turn on Delay.
Controlled Load Discharge Rate.
Controlled Turn on Slew Rate.
Stable Slew Rate (±2% typ) over Temperature Range.
TDFN-8 Package.
Pb-Free / Halogen-Free / RoHS compliant.
