SLG55022-200030 - High Voltage Gate Driver

Dialog Semiconductor

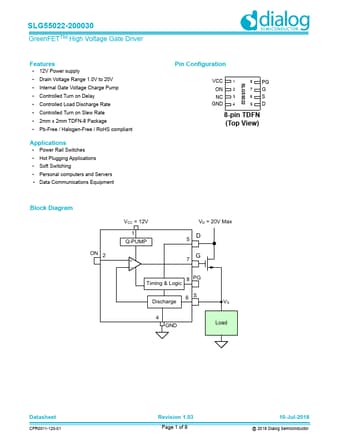

The SLG55022-200030 by Dialog Semiconductor is a High Voltage Gate Driver. Below is the official datasheet preview.

📥 Download Datasheet

SLG55022-200030 High Voltage Gate Driver by Dialog Semiconductor - Datasheet Preview — Official preview page of the SLG55022-200030 High Voltage Gate Driver datasheet (Dialog Semiconductor).

Datasheet Details

Part number	SLG55022-200030
Manufacturer	Dialog Semiconductor
File Size	235.96 KB
Description	High Voltage Gate Driver
Datasheet	SLG55022-200030-DialogSemiconductor.pdf
Additional preview pages of the SLG55022-200030 datasheet.

SLG55022-200030 Product details

Description

Pin # VCC ON NC GND D S G Pin Name 1 2 3 4 5 6 7 PG 8 Type Power Input -GND Input Input Output Output Pin Description Supply Voltage CMOS Logi

Features

12V Power supply.
Drain Voltage Range 1.0V to 20V.
Internal Gate Voltage Charge Pump.
Controlled Turn on Delay.
Controlled Load Discharge Rate.
Controlled Turn on Slew Rate.
2mm x 2mm TDFN-8 Package.
Pb-Free / Halogen-Free / RoHS compliant.
