SLG46517 - GreenPAK Programmable Mixed-Signal Matrix

Dialog Semiconductor

The SLG46517 by Dialog Semiconductor is a GreenPAK Programmable Mixed-Signal Matrix. Below is the official datasheet preview.

📥 Download Datasheet

SLG46517 GreenPAK Programmable Mixed-Signal Matrix by Dialog Semiconductor - Datasheet Preview — Official preview page of the SLG46517 GreenPAK Programmable Mixed-Signal Matrix datasheet (Dialog Semiconductor).

Datasheet Details

Part number	SLG46517
Manufacturer	Dialog Semiconductor
File Size	6.72 MB
Description	GreenPAK Programmable Mixed-Signal Matrix
Datasheet	SLG46517-DialogSemiconductor.pdf

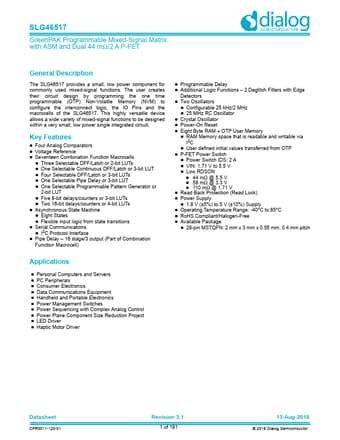

Additional preview pages of the SLG46517 datasheet.

SLG46517 Product details

Description

The SLG46517 provides a small, low power component for commonly used mixed-signal functions.

Features

Four Analog Comparators.
Voltage Reference.
Seventeen Combination Function Macrocells.
Three Selectable DFF/Latch or 2-bit LUTs.
One Selectable Continuous DFF/Latch or 3-bit LUT.
Four Selectable DFF/Latch or 3-bit LUTs.
One Selectable Pipe Delay or 3-bit LUT.
One Selectable Programmable Pattern Generator or 2-bit LUT.
Five 8-bit delays/counters or 3-bit LUTs.
Two 16-bit delays/counters or 4-bit LUTs.
As.
