SLG55026-200300V - Dual Power MOSFET Driver

Silego

The SLG55026-200300V by Silego is a Dual Power MOSFET Driver. Below is the official datasheet preview.

📥 Download Datasheet

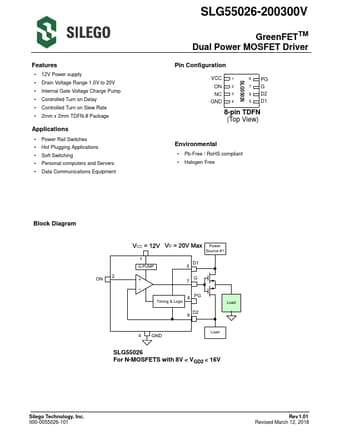

SLG55026-200300V Dual Power MOSFET Driver by Silego - Datasheet Preview — Official preview page of the **SLG55026-200300V** Dual Power MOSFET Driver datasheet (Silego).

Datasheet Details

Part number	SLG55026-200300V
Manufacturer	Silego
File Size	136.37 KB
Description	Dual Power MOSFET Driver
Datasheet	SLG55026-200300V-Silego.pdf
Additional preview pages of the SLG55026-200300V datasheet.

SLG55026-200300V Product details

Description

Pin # 1 2 3 4 5 6 7 8 Overview Pin Name VCC ON NC GND D1 D2 G PG Type Power Input -GND Input Input Output Output Pin Description Supply Voltage CMOS Logic Level.Hi

Features

12V Power supply.
Drain Voltage Range 1.0V to 20V.
Internal Gate Voltage Charge Pump.
Controlled Turn on Delay.
Controlled Turn on Slew Rate.
2mm x 2mm TDFN-8 Package.
