SLG55550A, SLG55550 - USB Host Charger Identification Analog Switches

Renesas

The SLG55550A by Renesas is a USB Host Charger Identification Analog Switches. Below is the official datasheet preview.

📥 Download Datasheet

SLG55550A USB Host Charger Identification Analog Switches by Renesas - Datasheet Preview — Official preview page of the SLG55550A USB Host Charger Identification Analog Switches datasheet (Renesas).

Datasheet Details

Part number	SLG55550A, SLG55550
Manufacturer	Renesas
File Size	220.14 KB
Description	USB Host Charger Identification Analog Switches
Datasheet	SLG55550-Renesas.pdf
Note	This datasheet PDF includes multiple part numbers: SLG55550A, SLG55550. Please refer to the document for exact specifications by model.

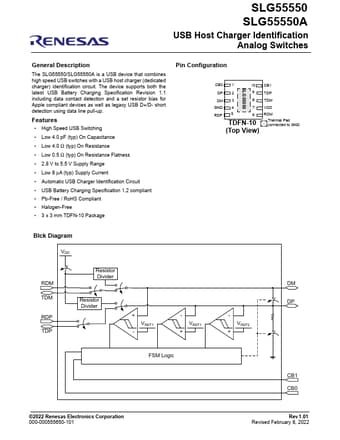

Additional preview pages of the SLG55550A datasheet.

SLG55550A Product details

Description

The SLG55550/SLG55550A is a USB device that combines high speed USB switches with a USB host charger (dedicated charger) identification circuit.

Features

High Speed USB Switching.
Low 4.0 pF (typ) On Capacitance.
Low 4.0 Ω (typ) On Resistance.
Low 0.5 Ω (typ) On Resistance Flatness.
2.8 V to 5.5 V Supply Range.
Low 8 µA (typ) Supply Current.
Automatic USB Charger Identification Circuit.
USB Battery Charging Specificatlon 1.2 compliant.
Pb-Free / RoHS Compliant.
Halogen-Free.
3 x 3 mm TDFN-10 Package Pin Configuration CB0 1 10 CB1 SLG55550 DP 2.
