SLG55583 - USB Host Charger Identification Analog Switche

Renesas

The SLG55583 by Renesas is a USB Host Charger Identification Analog Switche. Below is the official datasheet preview.

📥 Download Datasheet

SLG55583 USB Host Charger Identification Analog Switche by Renesas - Datasheet Preview — Official preview page of the SLG55583 USB Host Charger Identification Analog Switche datasheet (Renesas).

Datasheet Details

Part number	SLG55583
Manufacturer	Renesas
File Size	246.21 KB
Description	USB Host Charger Identification Analog Switche
Datasheet	SLG55583-Renesas.pdf

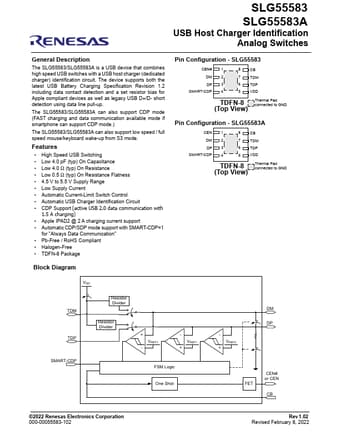

Additional preview pages of the SLG55583 datasheet.

SLG55583 Product details

Description

The SLG55583/SLG55583A is a USB device that combines high speed USB switches with a USB host charger (dedicated charger) identification circuit.

Features

High Speed USB Switching.
Low 4.0 pF (typ) On Capacitance.
Low 4.0 Ω (typ) On Resistance.
Low 0.5 Ω (typ) On Resistance Flatness.
4.5 V to 5.5 V Supply Range.
Low Supply Current.
Automatic Current-Limit Switch Control.
Automatic USB Charger Identification Circuit.
CDP Support (active USB 2.0 data communication with 1.5 A charging).
Apple IPAD2 @ 2 A charging current support.
Automatic CDP/SDP mode.
