SLG55584A, SLG55584 - USB Host Charger Identification Analog Switches

Renesas

The SLG55584A by Renesas is a USB Host Charger Identification Analog Switches. Below is the official datasheet preview.

📥 Download Datasheet

SLG55584A USB Host Charger Identification Analog Switches by Renesas - Datasheet Preview — Official preview page of the SLG55584A USB Host Charger Identification Analog Switches datasheet (Renesas).

Datasheet Details

Part number	SLG55584A, SLG55584
Manufacturer	Renesas
File Size	245.18 KB
Description	USB Host Charger Identification Analog Switches
Datasheet	SLG55584-Renesas.pdf
Note	This datasheet PDF includes multiple part numbers: SLG55584A, SLG55584. Please refer to the document for exact specifications by model.

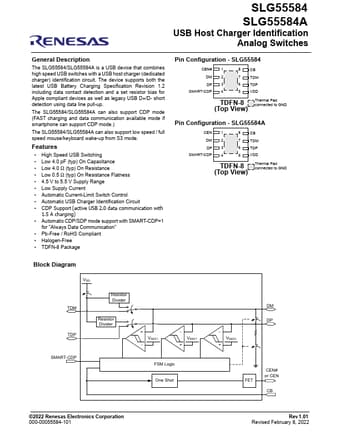

Additional preview pages of the SLG55584A datasheet.

SLG55584A Product details

Description

The SLG55584/SLG55584A is a USB device that combines high speed USB switches with a USB host charger (dedicated charger) identification circuit.

Features

High Speed USB Switching.
Low 4.0 pF (typ) On Capacitance.
Low 4.0 Ω (typ) On Resistance.
Low 0.5 Ω (typ) On Resistance Flatness.
4.5 V to 5.5 V Supply Range.
Low Supply Current.
Automatic Current-Limit Switch Control.
Automatic USB Charger Identification Circuit.
CDP Support (active USB 2.0 data communication with 1.5 A charging).
Automatic CDP/SDP mode support with SMART-CDP=1 for "Always Data Communicat.
