SLG51001 - Multi-Output LDOs and Integrated Load Switch

Renesas

The SLG51001 by Renesas is a Multi-Output LDOs and Integrated Load Switch. Below is the official datasheet preview.

📥 Download Datasheet

SLG51001 Multi-Output LDOs and Integrated Load Switch by Renesas - Datasheet Preview — Official preview page of the **SLG51001** Multi-Output LDOs and Integrated Load Switch datasheet (Renesas).

Datasheet Details

Part number	SLG51001
Manufacturer	Renesas
File Size	756.89 KB
Description	Multi-Output LDOs and Integrated Load Switch
Datasheet	SLG51001-Renesas.pdf

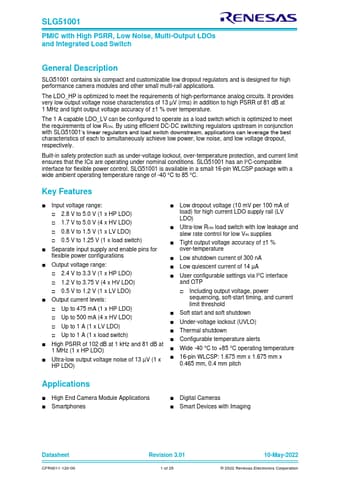

Additional preview pages of the SLG51001 datasheet.

SLG51001 Product details

Description

SLG51001 contains six compact and customizable low dropout regulators and is designed for high performance camera modules and other small multi-rail applications.

Features

Input voltage range:.
2.8 V to 5.0 V (1 x HP LDO).
1.7 V to 5.0 V (4 x HV LDO).
0.8 V to 1.5 V (1 x LV LDO).
0.5 V to 1.25 V (1 x load switch).
Separate input supply and enable pins for flexible power configurations.
Output voltage range:.
2.4 V to 3.3 V (1 x HP LDO).
1.2 V to 3.75 V (4 x HV LDO).
Low dropout voltage (10 mV per 100 mA of load) for high current LDO supply rail (LV LDO).
Ultra-low RON load switch wit.
