SLG5NT021-200000V - High Voltage Gate Driver

Renesas

The SLG5NT021-200000V by Renesas is a High Voltage Gate Driver. Below is the official datasheet preview.

📥 Download Datasheet

SLG5NT021-200000V High Voltage Gate Driver by Renesas - Datasheet Preview — Official preview page of the **SLG5NT021-200000V** High Voltage Gate Driver datasheet (Renesas).

Datasheet Details

Part number	SLG5NT021-200000V
Manufacturer	Renesas
File Size	287.06 KB
Description	High Voltage Gate Driver
Datasheet	SLG5NT021-200000V-Renesas.pdf
Additional preview pages of the SLG5NT021-200000V datasheet.

SLG5NT021-200000V Product details

Description

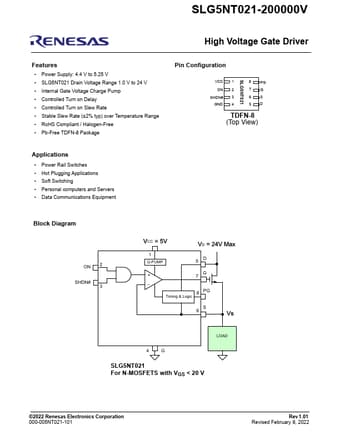

Pin Name VCC ON SHDN# GND D S G PG Overview Pin Number 1 2 3 4 5 6 7 8 Type Power Input Input GND Input Input Output Output Pin Description Supply Voltage CMOS Logic Level.High True Shut Down# - Low True Signal which immediately turns FET off Ground FET Drain Connection Source Connection FET Gate Drive Output CMOS Open Drain - Power Good, indicates external FET fully on The SLG5NT021 N-Channel FET Gate Driver is used for controlling a delayed turn on and ramping slew rate of the source vol

Features

Power Supply: 4.4 V to 5.25 V.
SLG5NT021 Drain Voltage Range 1.0 V to 24 V.
Internal Gate Voltage Charge Pump.
Controlled Turn on Delay.
Controlled Turn on Slew Rate.
Stable Slew Rate (±2% typ) over Temperature Range.
RoHS Compliant / Halogen-Free.
Pb-Free TDFN-8 Package High Voltage Gate Driver Pin Configuration SLG5NT021 VCC 1 ON 2 SHDN# 3 GND 4 8 PG 7G 6S 5D TDFN-8 (Top View).
