RJP63F3, RJP63F3DPP-M0 Datasheet - Renesas

RJP63F3, RJP63F3DPP-M0, N-Channel IGBT

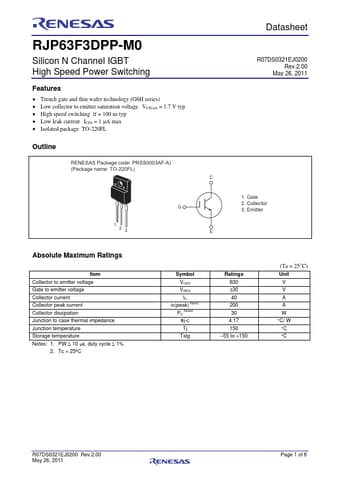

RJP63F3DPP-M0 Silicon N Channel IGBT High Speed Power Switching .

RJP63F3DPP-M0_Renesas.pdf

RJP63F3 Datasheet Preview — This datasheet PDF includes multiple part numbers: RJP63F3, RJP63F3DPP-M0. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

RJP63F3, RJP63F3DPP-M0

Manufacturer:

Renesas ↗

File Size:

240.41 KB

Description:

N-Channel IGBT

Note:

This datasheet PDF includes multiple part numbers: RJP63F3, RJP63F3DPP-M0.
Please refer to the document for exact specifications by model.

Features

* Trench gate and thin wafer technology (G6H series)
* Low collector to emitter saturation voltage VCE(sat) = 1.7 V typ
* High speed switching tf = 100 ns typ
* Low leak current ICES = 1 μA max
* Isolated package TO-220FL Outline RENESAS Package code: PRSS00
