PS9506 - PHOTOCOUPLER

Name: PS9506
SKU: PS9506-1488522

Renesas

📥 Download Datasheet

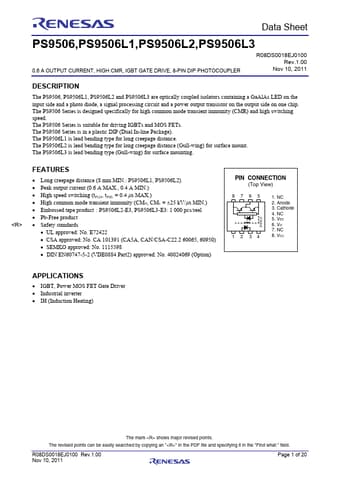

PS9506 Datasheet Preview — Preview of PS9506 PDF

Datasheet Details

Part number	PS9506
Manufacturer	Renesas
File Size	336.10 KB
Description	PHOTOCOUPLER
Datasheet	PS9506-Renesas.pdf

PS9506 Product details

Description

The PS9506, PS9506L1, PS9506L2 and PS9506L3 are optically coupled isolators containing a GaAlAs LED on the input side and a photo diode, a signal processing circuit and a power output transistor on the output side on one chip.

Features

Long creepage distance (8 mm MIN. : PS9506L1, PS9506L2).
Peak output current (0.6 A MAX. , 0.4 A MIN. ).
High speed switching (tPLH, tPHL = 0.4 μs MAX. ).
High common mode transient immunity (CMH, CML = ±25 kV/μs MIN. ).
Embossed tape product : PS9506L2-E3, PS9506L3-E3: 1 000 pcs/reel.
Pb-Free product.
Safety standards.
UL approved: No. E72422.
CSA approved: No. CA 101391 (CA5A, CAN/CSA-C22.2 60065, 60950).
