PS9513L1, PS9513 - 1Mbps OPEN COLLECTOR OUTPUT

Name: PS9513L1
SKU: PS9513L1-831985

California Eastern Labs

📥 Download Datasheet

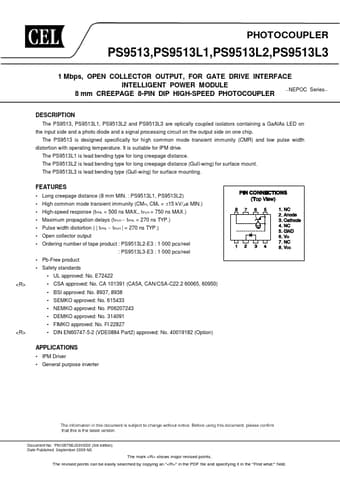

PS9513L1 Datasheet Preview — This datasheet PDF includes multiple part numbers: PS9513L1, PS9513. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	PS9513L1, PS9513
Manufacturer	California Eastern Labs
File Size	1.02 MB
Description	1Mbps OPEN COLLECTOR OUTPUT
Datasheet	PS9513-CaliforniaEasternLabs.pdf
Note	This datasheet PDF includes multiple part numbers: PS9513L1, PS9513. Please refer to the document for exact specifications by model.

PS9513L1 Product details

Description

The PS9513, PS9513L1, PS9513L2 and PS9513L3 are optically coupled isolators containing a GaAlAs LED on the input side and a photo diode and a signal processing circuit on the output side on one chip.

Features

Long creepage distance (8 mm MIN. : PS9513L1, PS9513L2).
High common mode transient immunity (CM H, CML = 15 kV/ s MIN. ).
High-speed response (tPHL = 500 ns MAX. , tPLH = 750 ns MAX. ).
Maximum propagation delays (t PLH.
Pulse width distortion ( | tPHL.
Open collector output.
Ordering number of tape product : PS9513L2-E3 : 1 000 pcs/reel : PS9513L3-E3 : 1 000 pcs/reel.
Pb-Free product.
Safety standards.
UL a.
