PS9505 - 8-PIN DIP PHOTOCOUPLER

Name: PS9505
SKU: PS9505-924111

Renesas

📥 Download Datasheet

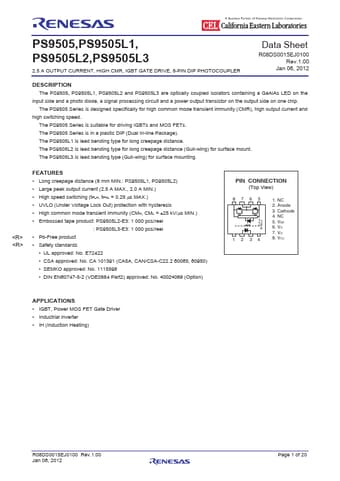

PS9505 Datasheet Preview — Preview of PS9505 PDF

Datasheet Details

Part number	PS9505
Manufacturer	Renesas
File Size	3.39 MB
Description	8-PIN DIP PHOTOCOUPLER
Datasheet	PS9505-Renesas.pdf

PS9505 Product details

Description

The PS9505, PS9505L1, PS9505L2 and PS9505L3 are optically coupled isolators containing a GaAlAs LED on the input side and a photo diode, a signal processing circuit and a power output transistor on the output side on one chip.

Features

Long creepage distance (8 mm MIN. : PS9505L1, PS9505L2).
Large peak output current (2.5 A MAX. , 2.0 A MIN. ).
High speed switching (tPLH, tPHL = 0.25 μs MAX. ).
UVLO (Under Voltage Lock Out) protection with hysteresis.
High common mode transient immunity (CMH, CML = ±25 kV/μs MIN. ).
Embossed tape product: PS9505L2-E3: 1 000 pcs/reel : PS9505L3-E3: 1 000 pcs/reel.
Pb-Free product.
Safety standards.
UL approved: No. E72.
