PS9552 - HIGH CMR IGBT GATE DRIVE PHOTOCOUPLER 8-PIN DIP PHOTOCOUPLER

California Eastern Labs

📥 Download Datasheet

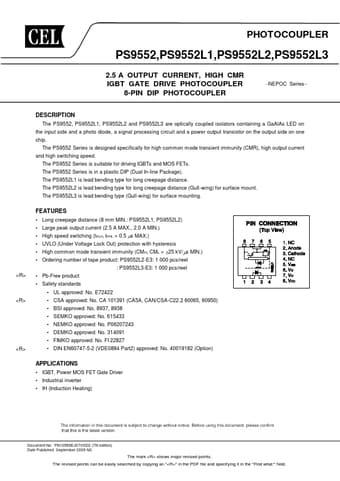

PS9552 Datasheet Preview — Preview of PS9552 PDF

Datasheet Details

Part number	PS9552
Manufacturer	California Eastern Labs
File Size	1.20 MB
Description	HIGH CMR IGBT GATE DRIVE PHOTOCOUPLER 8-PIN DIP PHOTOCOUPLER
Datasheet	PS9552_CaliforniaEasternLabs.pdf

PS9552 Product details

Description

The PS9552, PS9552L1, PS9552L2 and PS9552L3 are optically coupled isolators containing a GaAlAs LED on the input side and a photo diode, a signal processing circuit and a power output transistor on the output side on one chip.

Features

Long creepage distance (8 mm MIN. : PS9552L1, PS9552L2).
Large peak output current (2.5 A MAX. , 2.0 A MIN. ).
High speed switching (tPLH tPHL = 0.5 s MAX. ).
UVLO (Under Voltage Lock Out) protection with hysteresis.
High common mode transient immunity (CMH, CML = 25 kV/ s MIN. ).
Ordering number of tape product: PS9552L2-E3: 1 000 pcs/reel.
Pb-Free product : PS9552L3-E3: 1 000 pcs/reel.
Safety standards.
