Datasheet Details
Part number:
PS9505L1, PS9505
Manufacturer:
File Size:
3.39 MB
Description:
8-pin dip photocoupler.
Note:
This datasheet PDF includes multiple part numbers: PS9505L1, PS9505.
Please refer to the document for exact specifications by model.

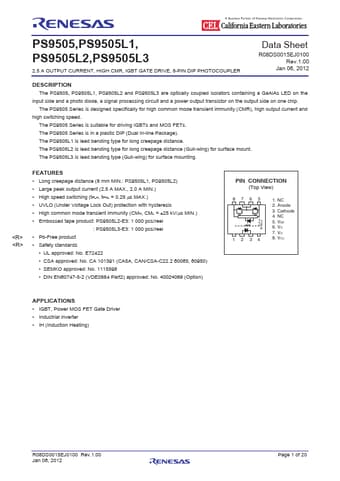

PS9505L1, PS9505, 8-PIN DIP PHOTOCOUPLER
The PS9505, PS9505L1, PS9505L2 and PS9505L3 are optically coupled isolators containing a GaAlAs LED on the input side and a photo diode, a signal processing circuit and a power output transistor on the output side on one chip.
The PS9505 Series is designed specifically for high common mode transient
PS9505L1 Features
* Long creepage distance (8 mm MIN.: PS9505L1, PS9505L2)
* Large peak output current (2.5 A MAX., 2.0 A MIN.)
* High speed switching (tPLH, tPHL = 0.25 μs MAX.)
* UVLO (Under Voltage Lock Out) protection with hysteresis
* High common mode transient immunity (C
