H5N2001LS, H5N2001LD Silicon N Channel MOS FET High Speed Power Switching

Renesas Technology

Description

H5N2001LD, H5N2001LS, H5N2001LM Silicon N Channel MOS FET High Speed Power Switching REJ03G1339-0600 Rev.6.00 Jul 14, 2006 .

📥 Download Datasheet

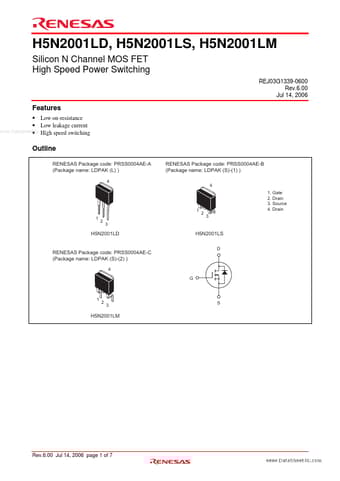

H5N2001LS Datasheet Preview — This datasheet PDF includes multiple part numbers: H5N2001LS, H5N2001LD. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: H5N2001LS, H5N2001LD
Manufacturer: Renesas ↗ Technology
File Size: 134.92 KB
Datasheet: H5N2001LD_RenesasTechnology.pdf
Description: Silicon N Channel MOS FET High Speed Power Switching
Note: This datasheet PDF includes multiple part numbers: H5N2001LS, H5N2001LD.
Please refer to the document for exact specifications by model.

Features

* Low on-resistance
* Low leakage current www. DataSheet4U. com
* High speed switching Outline RENESAS Package code: PRSS0004AE-A (Package name: LDPAK (L) ) 4 4 1. Gate 2. Drain 3. Source 4. Drain 2 3 RENESAS Package code: PRSS0004AE-B (Package name: LDPAK (S)-(1) ) 1 1 2 3
