H5N2005DS, H5N2005DL MOSFET

Renesas

Description

H5N2005DL, H5N2005DS 200V - 6A - MOS FET High Speed Power Switching Preliminary Datasheet R07DS0796EJ0400 (Previous: REJ03G1104-0300) Rev.4.00 Jun 07.

📥 Download Datasheet

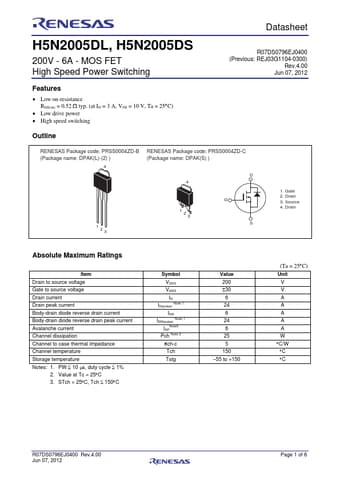

H5N2005DS Datasheet Preview — This datasheet PDF includes multiple part numbers: H5N2005DS, H5N2005DL. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: H5N2005DS, H5N2005DL
Manufacturer: Renesas ↗
File Size: 78.48 KB
Datasheet: H5N2005DL-Renesas.pdf
Description: MOSFET
Note: This datasheet PDF includes multiple part numbers: H5N2005DS, H5N2005DL.
Please refer to the document for exact specifications by model.

Features

* Low on-resistance RDS(on) = 0.52  typ. (at ID = 3 A, VGS = 10 V, Ta = 25C)
* Low drive power
* High speed switching Outline RENESAS Package code: PRSS0004ZD-B (Package name: DPAK(L)-(2) ) 4 RENESAS Package code: PRSS0004ZD-C (Package name: DPAK(S) ) D 4 123 123 G S 1. Gate 2.
