H5N5004PL Silicon N-Channel MOSFET

H5N5004PL Description

H5N5004PL Silicon N Channel MOS FET High Speed Power Switching ADE-208-1381 (Z) Target Specification 1st.Edition Mar.2001 .

H5N5004PL Features

* Low on-resistance: R DS(on) = 0.09 typ. Low leakage current: IDSS = 10 µA max (at VDS = 500 V) High speed switching: tf = 280 ns typ (at VGS = 10 V, VDD = 250 V, ID = 25 A) Low gate charge: Qg = 220 nC typ (at VDD = 400 V, VGS = 10 V, ID =

📥 Download Datasheet

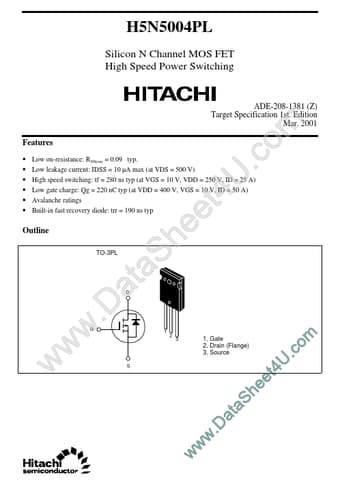

Preview of H5N5004PL PDF
