QPA0524 - 5 Watt GaN Power Amplifier

Datasheet Summary

Description

Data Sheet Rev.

A, January 2024 | Subject to change without notice 1 of 29 © 2024 Qorvo US, Inc.

All rights reserved.

Features

  • Frequency Range: 24.25.
  • 26.5 GHz.
  • Linear POUT: 26 dBm.
  • ACPR (POUT = 26 dBm, 802.11ac): -30 dBc.
  • POUT (PIN = 20 dBm): 37 dBm.
  • PAE (PIN = 20 dBm): 23 %.
  • Small Signal Gain: 23 dB.
  • Bias: VD = 20 V, IDQ = 126 mA, VG = -2.2 V typ. range.
  • Package Dimensions: 5.00 x 5.50 x 1.63 mm Performance is typical across frequency. Please reference electrical specification table and data plots for more details. Functional Block Dia.

📥 Download Datasheet

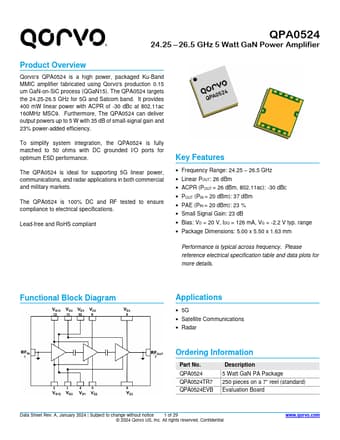

Datasheet preview – QPA0524

Datasheet Details

Part number QPA0524
Manufacturer Qorvo
File Size 1.46 MB
Description 5 Watt GaN Power Amplifier
Datasheet download datasheet QPA0524 Datasheet
Additional preview pages of the QPA0524 datasheet.

📁 Similar Datasheet

  • QPA1013D - 10W GaN Power Amplifier (TriQuint)
  • QPA2237 - 10W GaN Power Amplifier (TriQuint Semiconductor)
  • QPA2626 - GaAs Low Noise Amplifier (TriQuint Semiconductor)
  • QPA2628 - GaAs Low Noise Amplifier (TriQuint Semiconductor)
  • QPA2628D - GaAs Low Noise Amplifier (TriQuint Semiconductor)
  • QPA3230 - GaAs/GaN Power Doubler Hybrid (RF Micro Devices)
  • QPA3240 - GaAs/GaN Power Doubler Hybrid (RF Micro Devices)
  • QPA4263A - DC to 3500MHz CASCADABLE SiGe HBT MMIC AMPLIFIER (RF Micro Devices)
  • QPA4363A - CASCADABLE SiGe HBT MMIC AMPLIFIER (RF Micro Devices)
  • QPA4463A - CASCADABLE SiGe HBT MMIC AMPLIFIER (RF Micro Devices)
Other Datasheets by Qorvo
  • QPA0506 - 4Watt C-Band Power Amplifier
  • QPA0001 - 2W GaN Driver Amplifier
  • QPA0015 - 8 Watt GaN Power Amplifier
  • QPA0016 - 15 Watt GaN Power Amplifier
  • QPA0023 - Driver Amplifier
  • QPA0106 - 18W GaN Power Amplifier
  • QPA0163L - CASCADABLE SiGe HBT MMIC AMPLIFIER
  • QPA0363A - CASCADABLE SiGe HBT MMIC AMPLIFIER

Full PDF Text Transcription

Click to expand full text
QPA0524 24.25 – 26.5 GHz 5 Watt GaN Power Amplifier Product Overview Qorvo's QPA0524 is a high power, packaged Ku-Band MMIC amplifier fabricated using Qorvo's production 0.15 um GaN-on-SiC process (QGaN15). The QPA0524 targets the 24.25-26.5 GHz for 5G and Satcom band. It provides 400 mW linear power with ACPR of -30 dBc at 802.11ac 160MHz MSC9. Furthermore, The QPA0524 can deliver output powers up to 5 W with 35 dB of small-signal gain and 23% power-added efficiency. To simplify system integration, the QPA0524 is fully matched to 50 ohms with DC grounded I/O ports for optimum ESD performance. The QPA0524 is ideal for supporting 5G linear power, communications, and radar applications in both commercial and military markets.
