QPA0015 - 8 Watt GaN Power Amplifier

Datasheet Summary

Description

Data Sheet Rev.

A, January 2024 | Subject to change without notice 1 of 33 © 2024 Qorvo US, Inc.

All rights reserved.

Features

  • Frequency Range: 13.75.
  • 14.5 GHz.
  • Extended Frequency Range: 12.75.
  • 15.35 GHz.
  • Linear POUT: 35 dBm.
  • POUT (PIN = 10 dBm): 39 dBm.
  • PAE (PIN = 10 dBm): 32 %.
  • IM3 (POUT_TOTAL = 35 dBm): -25 dBc.
  • Small Signal Gain: 35 dB.
  • Bias: VD = 24 V, IDQ = 195 mA, VG = -2.3 V typ. range.
  • Package Dimensions: 7.00 x 4.50 x 2.45 mm Performance is typical across frequency. Please reference electrical specification tab.

📥 Download Datasheet

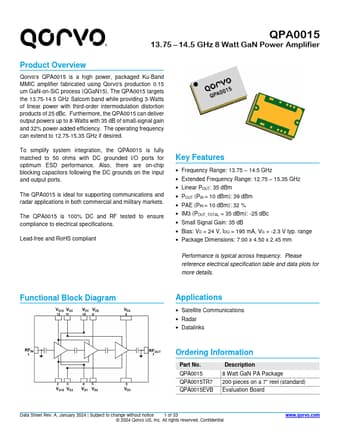

Datasheet preview – QPA0015

Datasheet Details

Part number QPA0015
Manufacturer Qorvo
File Size 1.59 MB
Description 8 Watt GaN Power Amplifier
Datasheet download datasheet QPA0015 Datasheet
Additional preview pages of the QPA0015 datasheet.

📁 Similar Datasheet

  • QPA1013D - 10W GaN Power Amplifier (TriQuint)
  • QPA2237 - 10W GaN Power Amplifier (TriQuint Semiconductor)
  • QPA2626 - GaAs Low Noise Amplifier (TriQuint Semiconductor)
  • QPA2628 - GaAs Low Noise Amplifier (TriQuint Semiconductor)
  • QPA2628D - GaAs Low Noise Amplifier (TriQuint Semiconductor)
  • QPA3230 - GaAs/GaN Power Doubler Hybrid (RF Micro Devices)
  • QPA3240 - GaAs/GaN Power Doubler Hybrid (RF Micro Devices)
  • QPA4263A - DC to 3500MHz CASCADABLE SiGe HBT MMIC AMPLIFIER (RF Micro Devices)
  • QPA4363A - CASCADABLE SiGe HBT MMIC AMPLIFIER (RF Micro Devices)
  • QPA4463A - CASCADABLE SiGe HBT MMIC AMPLIFIER (RF Micro Devices)
Other Datasheets by Qorvo
  • QPA0016 - 15 Watt GaN Power Amplifier
  • QPA0001 - 2W GaN Driver Amplifier
  • QPA0023 - Driver Amplifier
  • QPA0106 - 18W GaN Power Amplifier
  • QPA0163L - CASCADABLE SiGe HBT MMIC AMPLIFIER
  • QPA0363A - CASCADABLE SiGe HBT MMIC AMPLIFIER
  • QPA0506 - 4Watt C-Band Power Amplifier
  • QPA0524 - 5 Watt GaN Power Amplifier

Full PDF Text Transcription

Click to expand full text
QPA0015 13.75 – 14.5 GHz 8 Watt GaN Power Amplifier Product Overview Qorvo's QPA0015 is a high power, packaged Ku-Band MMIC amplifier fabricated using Qorvo's production 0.15 um GaN-on-SiC process (QGaN15). The QPA0015 targets the 13.75-14.5 GHz Satcom band while providing 3-Watts of linear power with third-order intermodulation distortion products of 25 dBc. Furthermore, the QPA0015 can deliver output powers up to 8-Watts with 35 dB of small-signal gain and 32% power-added efficiency. The operating frequency can extend to 12.75-15.35 GHz if desired. To simplify system integration, the QPA0015 is fully matched to 50 ohms with DC grounded I/O ports for optimum ESD performance. Also, there are on-chip blocking capacitors following the DC grounds on the input and output ports.
