QPA0001 - 2W GaN Driver Amplifier

Datasheet Summary

Description

Qorvo’s QPA0001 is a packaged driver amplifier fabricated on Qorvo’s 0.15 um QGaN15 on SiC process.

Operating from 8.5 to 10.5 GHz, the QPA0001 can deliver 2 W saturated output power, 50 % power-added efficiency and 27 dB of large signal gain.

Features

  • Frequency Range: 8.5.
  • 10.5 GHz.
  • Small Signal Gain: 33 dB (mid-band).
  • Pout: 33 dBm (PIN = 6 dBm).
  • Large Signal Gain: 27 dB (@Pin = 6 dBm).
  • PAE: 50 % Pulse Mode.
  • Input Return Loss: 12 dB.
  • Output Return Loss: 10 dB.
  • Harmonic: -20 dBc (@ Pin = 6 dBm).
  • Active Bias Control: VD = 16 V, IDQ = 55 mA typical.
  • Package Dimensions: 4.0 x 3.0 x 0.65 mm Functional Block Diagram.

📥 Download Datasheet

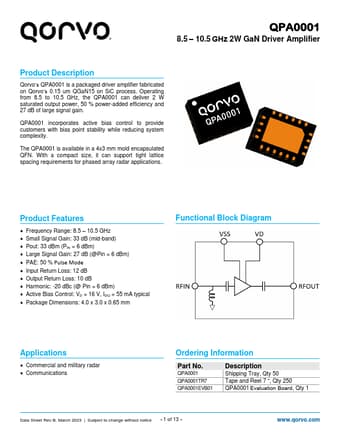

Datasheet preview – QPA0001
