QPA0023 - Driver Amplifier

Datasheet Summary

Description

Data Sheet Rev.

18 GHz Driver Amplifier Absolute Maximum Ratings Parameter Min Values Max Values Units Drain Voltage (VD

Features

  • Frequency Range: 6.
  • 18 GHz.
  • Small Signal Gain: 14 dB.
  • P1dB: 29 dBm.
  • Psat: 30 dBm.
  • Positive Gain Slope.
  • Gain Flatness < +/- 1dB.
  • IMD3:.
  • 42 dBc (typical) (Pout = 20 dBm/tone).
  • Bias: VD = 5 V, IDQ = 400 mA.
  • Die Dimensions: 4.5 x 4.5 x 1.62 mm.

📥 Download Datasheet

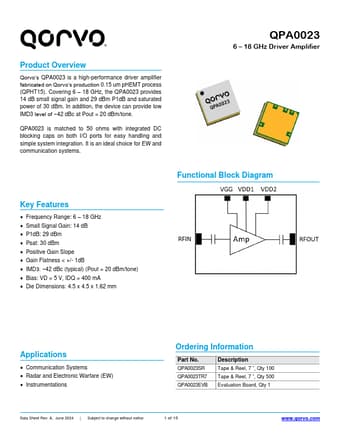

Datasheet preview – QPA0023

Datasheet Details

Part number QPA0023
Manufacturer Qorvo
File Size 973.27 KB
Description Driver Amplifier
Datasheet download datasheet QPA0023 Datasheet
Additional preview pages of the QPA0023 datasheet.

📁 Similar Datasheet

  • QPA1013D - 10W GaN Power Amplifier (TriQuint)
  • QPA2237 - 10W GaN Power Amplifier (TriQuint Semiconductor)
  • QPA2626 - GaAs Low Noise Amplifier (TriQuint Semiconductor)
  • QPA2628 - GaAs Low Noise Amplifier (TriQuint Semiconductor)
  • QPA2628D - GaAs Low Noise Amplifier (TriQuint Semiconductor)
  • QPA3230 - GaAs/GaN Power Doubler Hybrid (RF Micro Devices)
  • QPA3240 - GaAs/GaN Power Doubler Hybrid (RF Micro Devices)
  • QPA4263A - DC to 3500MHz CASCADABLE SiGe HBT MMIC AMPLIFIER (RF Micro Devices)
  • QPA4363A - CASCADABLE SiGe HBT MMIC AMPLIFIER (RF Micro Devices)
  • QPA4463A - CASCADABLE SiGe HBT MMIC AMPLIFIER (RF Micro Devices)
Other Datasheets by Qorvo
  • QPA0001 - 2W GaN Driver Amplifier
  • QPA0015 - 8 Watt GaN Power Amplifier
  • QPA0016 - 15 Watt GaN Power Amplifier
  • QPA0106 - 18W GaN Power Amplifier
  • QPA0163L - CASCADABLE SiGe HBT MMIC AMPLIFIER
  • QPA0363A - CASCADABLE SiGe HBT MMIC AMPLIFIER
  • QPA0506 - 4Watt C-Band Power Amplifier
  • QPA0524 - 5 Watt GaN Power Amplifier

Full PDF Text Transcription

Click to expand full text
® Product Overview Qorvo’s QPA0023 is a high-performance driver amplifier fabricated on Qorvo’s production 0.15 um pHEMT process (QPHT15). Covering 6 – 18 GHz, the QPA0023 provides 14 dB small signal gain and 29 dBm P1dB and saturated power of 30 dBm. In addition, the device can provide low IMD3 level of −42 dBc at Pout = 20 dBm/tone. QPA0023 is matched to 50 ohms with integrated DC blocking caps on both I/O ports for easy handling and simple system integration. It is an ideal choice for EW and communication systems.
